Paint Stop Filter

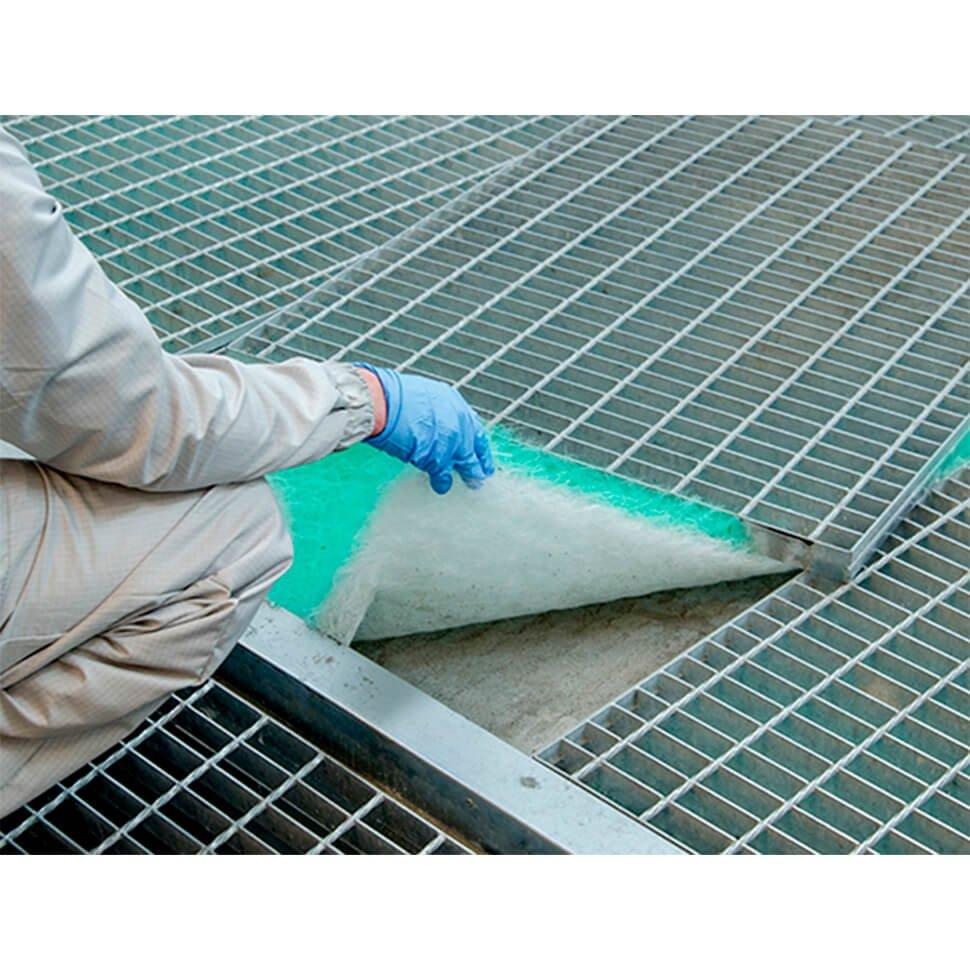

The paint stop floor filter media consists of bouncy layers that are made of filament fiberglass. It is thermally bonded and internally linked to each other, forming graduated density following the airflow direction for high-depth filtration.

The ample and evenly distributed space between filament and layers allows a fast bounce-back after being compressed, which plays a vital role in capturing paint mist and adhesive dust.

Applications

Automotive Paint Booths: capturing overspray generated during the painting process.
Industrial Coating and Finishing: trapping paint and coating particles.
Woodworking and Furniture Manufacturing: controlling overspray and removing particulates generated during staining, varnishing, and painting processes.

Features

Grade: G3; MERV5, MERV6
Filter material: Fiberglass
Excellent paint arrestor for paint booths
Fluffy and bouncy structure for high-depth filtration
Graduated density multi-layers ensure high dust-holding capacity
Corrosion resistance: Uniquely suited in high solvent, acid-base, and high-temperature conditions
Customizable media sizes and thicknesses for different spray paint booth/room settings

Technical data:		Paint Stop 1"	Paint Stop 2"	Paint Stop 3"	Paint Stop 4"
Filter area	[m2]	1	1	1	1
Material thickness approx.	[mm]	25	50	75	100
Recommended nominal air flow	[m3/h/m2]		2.500 - 6.300
Air velocity	[m/s]		0,7 - 1,75
Initial pressure drop (measured at air velocity on a flat sheet 610 x 610 mm)	[Pa]	1 - 11	1 - 15	2 - 18	2 - 20
